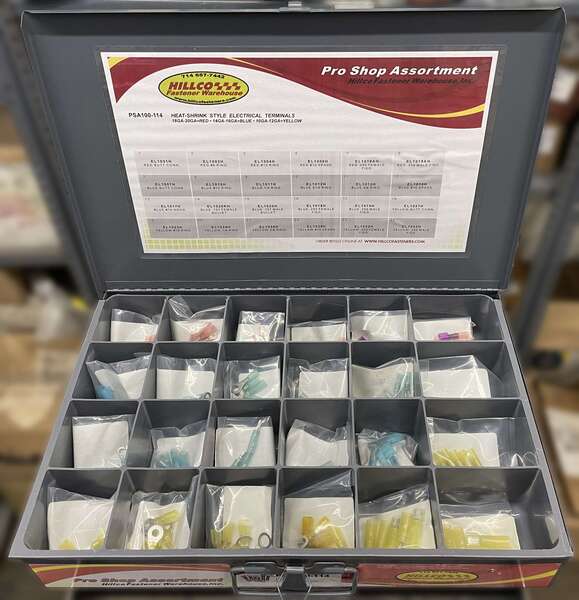

PRO SHOP ASSORTMENT: HEAT-SHRINK WIRING TERMINALS

UM: EA
Weight: 3.40000

KRIMPA-SEAL HEAT SHRINK INSULATED WIRING TERMINALS
24 items, 120 pieces

Insulation Color	Wire Gauge (AWG)
Red	18 - 20 AWG
Blue	14 - 16 AWG
Yellow	10 - 12 AWG

1 EL1001H RED BUTT CONN.	2 EL1002H RED #6 RING	3 EL1004H RED #10 RING	4 EL1006H RED #10 SPADE	5 EL1018AH RED 1/4 FEMALE FISO	6 EL1019AH RED 1/4 MALE FISO
7 EL1007H BLUE BUTT CONN.	8 EL1010H BLUE #10 RING	9 EL1011H BLUE 1/4 RING	10 EL1012H BLUE 5/16 RING	11 EL1013H BLUE 3/8 RING	12 EL1015H BLUE #10 SPADE
13 EL1017H BLUE #10 HOOK	14 EL1020RH BLUE .157 FEMALE BULLET	15 EL1020H BLUE .157 MALE BULLET	16 EL1018H BLUE 1/4 FEMALE FISO	17 EL1019H BLUE 1/4 MALE FISO	18 EL1021H YELLOW BUTT CONN.
19 EL1023H YELLOW #10 RING	20 EL1024H YELLOW 1/4 RING	21 EL1026H YELLOW 3/8 RING	22 EL1029H YELLOW #10 SPADE	23 EL1032H YELLOW 1/4 FEMALE FISO	24 EL1033H YELLOW 1/4 MALE FISO

Specifications

Item	Qty
EL1001H 22-18 GA KRIMPA-SEAL HEAT SHRINK INSULATED BUTT CONNECTORS RED	5
EL1002H 22-18 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS #6 STUD RED	5
EL1004H 22-18 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS #10 STUD RED	5
EL1006H 22-18 GA KRIMPA-SEAL HEAT SHRINK INSULATED SPADE TERMINALS #10 STUD RED	5
EL1007H 16-14 GA KRIMPA-SEAL HEAT SHRINK INSULATED BUTT CONNECTORS BLUE	5
EL1010H 16-14 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS #10 STUD BLUE	5
EL1011H 16-14 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS 1/4 STUD BLUE	5
EL1012H 16-14 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS 5/16 STUD BLUE	5
EL1013H 16-14 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS 3/8 STUD BLUE	5
EL1015H 16-14 GA KRIMPA-SEAL HEAT SHRINK INSULATED SPADE TERMINALS #10 STUD BLUE	5
EL1018AH 22-18 GA KRIMPA-SEAL HEAT SHRINK INSULATED FEMALE QUICK-CONNECT TERMINALS .250 TAB RED	5
EL1018H 16-14 GA KRIMPA-SEAL HEAT SHRINK INSULATED FEMALE QUICK-CONNECT TERMINALS .250 TAB BLUE	5
EL1019AH 22-18 GA KRIMPA-SEAL HEAT SHRINK INSULATED MALE QUICK-CONNECT TERMINALS .250 TAB RED	5
EL1019H 16-14 GA KRIMPA-SEAL HEAT SHRINK INSULATED MALE QUICK-CONNECT TERMINALS .250 TAB BLUE	5
EL1021H 12-10 GA KRIMPA-SEAL HEAT SHRINK INSULATED BUTT CONNECTORS YELLOW	5
EL1023H 12-10 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS #10 STUD YELLOW	5
EL1024H 12-10 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS 1/4 STUD YELLOW	5
EL1026H 12-10 GA KRIMPA-SEAL HEAT SHRINK INSULATED RING TERMINALS 3/8 STUD YELLOW	5
EL1029H 12-10 GA KRIMPA-SEAL HEAT SHRINK INSULATED SPADE TERMINALS #10 STUD YELLOW	5
EL1032H 12-10 GA KRIMPA-SEAL HEAT SHRINK INSULATED FEMALE QUICK-CONNECT TERMINALS .250 TAB YELLOW	5
EL1033H 12-10 GA KRIMPA-SEAL HEAT SHRINK INSULATED MALE QUICK-CONNECT TERMINALS .250 TAB YELLOW	5

NOTE: Images are representative. If a specific characteristic (thread length, markings, serrations, etc.) is critical to your application, please contact us to confirm before ordering.
