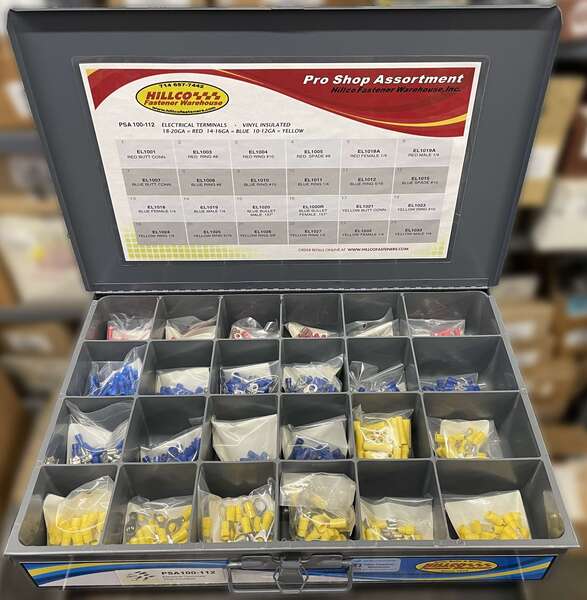

PRO SHOP ASSORTMENT: VINYL INSULATED WIRING TERMINALS

UM: EA
Weight: 5.00000

VINYL INSULATED WIRING TERMINALS
24 items, 925 pieces

Insulation Color	Wire Gauge (AWG)
Red	18 - 22 AWG
Blue	14 - 16 AWG
Yellow	10 - 12 AWG

1 EL1001 RED BUTT CONN.	2 EL1003 RED #8 RING	3 EL1004 RED #10 RING	4 EL1005 RED #8 SPADE	5 EL1018A RED 1/4 FEMALE QUICK-CONNECT	6 EL1019A RED 1/4 MALE QUICK-CONNECT
7 EL1007 BLUE BUTT CONN.	8 EL1008 BLUE #6 RING	9 EL1010 BLUE #10 RING	10 EL1011 BLUE 1/4 RING	11 EL1012 BLUE 5/16 RING	12 EL1015 BLUE #10 SPADE
13 EL1018 BLUE 1/4 FEMALE QUICK-CONNECT	14 EL1019 BLUE 1/4 MALE QUICK-CONNECT	15 EL1020 BLUE .157 MALE BULLET	16 EL1020R BLUE .157 FEMALE BULLET	17 EL1021 YELLOW BUTT CONN.	18 EL1023 YELLOW #10 RING
19 EL1024 YELLOW 1/4 RING	20 EL1025 YELLOW 5/16 RING	21 EL1026 YELLOW 3/8 RING	22 EL1027 YELLOW 1/2 RING	23 EL1032 YELLOW 1/4 FEMALE QUICK-CONNECT	24 EL1033 YELLOW 1/4 MALE QUICK-CONNECT

Specifications

Item	Qty
EL1001 22-18 GA VINYL INSULATED BUTT CONNECTORS RED	50
EL1003 22-18 GA VINYL INSULATED RING TERMINALS #8 STUD RED	50
EL1004 22-18 GA VINYL INSULATED RING TERMINALS #10 STUD RED	50
EL1005 22-18 GA VINYL INSULATED SPADE TERMINALS #8 STUD RED	50
EL1007 16-14 GA VINYL INSULATED BUTT CONNECTORS BLUE	50
EL1008 16-14 GA VINYL INSULATED RING TERMINALS #6 STUD BLUE	50
EL1010 16-14 GA VINYL INSULATED RING TERMINALS #10 STUD BLUE	50
EL1012 16-14 GA VINYL INSULATED RING TERMINALS 5/16 STUD BLUE	50
EL1015 16-14 GA VINYL INSULATED SPADE TERMINALS #10 STUD BLUE	50
EL1018 16-14 GA VINYL INSULATED FEMALE QUICK-CONNECT TERMINALS .250 TAB BLUE	50
EL1018A 22-18 GA VINYL INSULATED FEMALE QUICK-CONNECT TERMINALS .250 TAB RED	50
EL1019 16-14 GA VINYL INSULATED MALE QUICK-CONNECT TERMINALS .250 TAB BLUE	50
EL1019A 22-18 GA VINYL INSULATED MALE QUICK-CONNECT TERMINALS .250 TAB RED	50
EL1020 16-14 GA VINYL INSULATED MALE BULLET CONNECTORS .157 BLUE	25
EL1020R 16-14 GA VINYL INSULATED FEMALE BULLET CONNECTORS .157BLUE	25
EL1021 12-10 GA VINYL INSULATED BUTT CONNECTORS YELLOW	50
EL1023 12-10 GA VINYL INSULATED RING TERMINALS #10 STUD YELLOW	25
EL1024 12-10 GA VINYL INSULATED RING TERMINALS 1/4 STUD YELLOW	25
EL1025 12-10 GA VINYL INSULATED RING TERMINALS 5/16 STUD YELLOW	25
EL1026 12-10 GA VINYL INSULATED RING TERMINALS 3/8 STUD YELLOW	25
EL1027 12-10 GA VINYL INSULATED RING TERMINALS 1/2 STUD YELLOW	25
EL1032 12-10 GA VINYL INSULATED FEMALE QUICK-CONNECT TERMINALS .250 TAB YELLOW	25
EL1033 12-10 GA VINYL INSULATED MALE QUICK-CONNECT TERMINALS .250 TAB YELLOW	25

NOTE: Images are representative. If a specific characteristic (thread length, markings, serrations, etc.) is critical to your application, please contact us to confirm before ordering.
